QD Scope Mount - ARC M10
SOLD
**FINAL PRICE DROP*** $150
American Rifle Company M10-L scope mount.
30mm tube
40mm height (1.57")
0 MOA
8.3oz weight
- American Rifle Company’s M10 QD-L is designed for use with rifles having full length rails.
- Mount height is the distance from the top of the rail to optical center and is defined at the center of the aft ring.
- Each clamp is 21mm (0.83") in width.
- Inside distance between clamps is 69mm (2.717"). Outside distance from clamp to clamp is 111mm (4.370").
- Designed to fit Picatinny (MIL-STD-1913) rails.
- Proudly engineered and manufactured in the USA.
The M10 QD-L features two innovative spring-loaded, pivoting rail clamps. Due to the high placement of the pivot and the design’s inherently low friction, the pivoting clamps impart the majority of the clamping force upon the rail, not the ring. The resulting efficiency enables tighter clamping than that offered by conventional levers. Moreover, the pivoting rail clamps won’t get stuck like levers do and don’t need to be adjusted for variations in rail size. They offer real QD functionality enabling the shooter to remove and reattach a scope in seconds. The thumb screws are made from 410 stainless steel and are captivated by an O-ring so you won’t lose them. Their knurled and comparatively inconspicuous design offers a secure grip while making them less prone than levers to snagging equipment or brush.
The M10 QD-L features a crowned-rail interface which precisely and correctly engaged rails, even those which fail to meet Mil and STANAG specification. The result is excellent return-to-zero performance.
The M10 QD-L holds firmly without marring or indenting the scope.
The uniquely split rings of the M10 QD-L maintain reticle alignment during scope installation while their low profile leaves the shooter with a clear view of the turrets.
Extremely strong and light-weight the M10 QD-L is CNC machined from 7075 aluminum alloy and anodized with a mil-spec hard coat for excellent corrosion resistance and a matte-black finish.
Stainless steel hardware is used throughout.
For more info: M10 QD-L Scope Mount | American Rifle Company

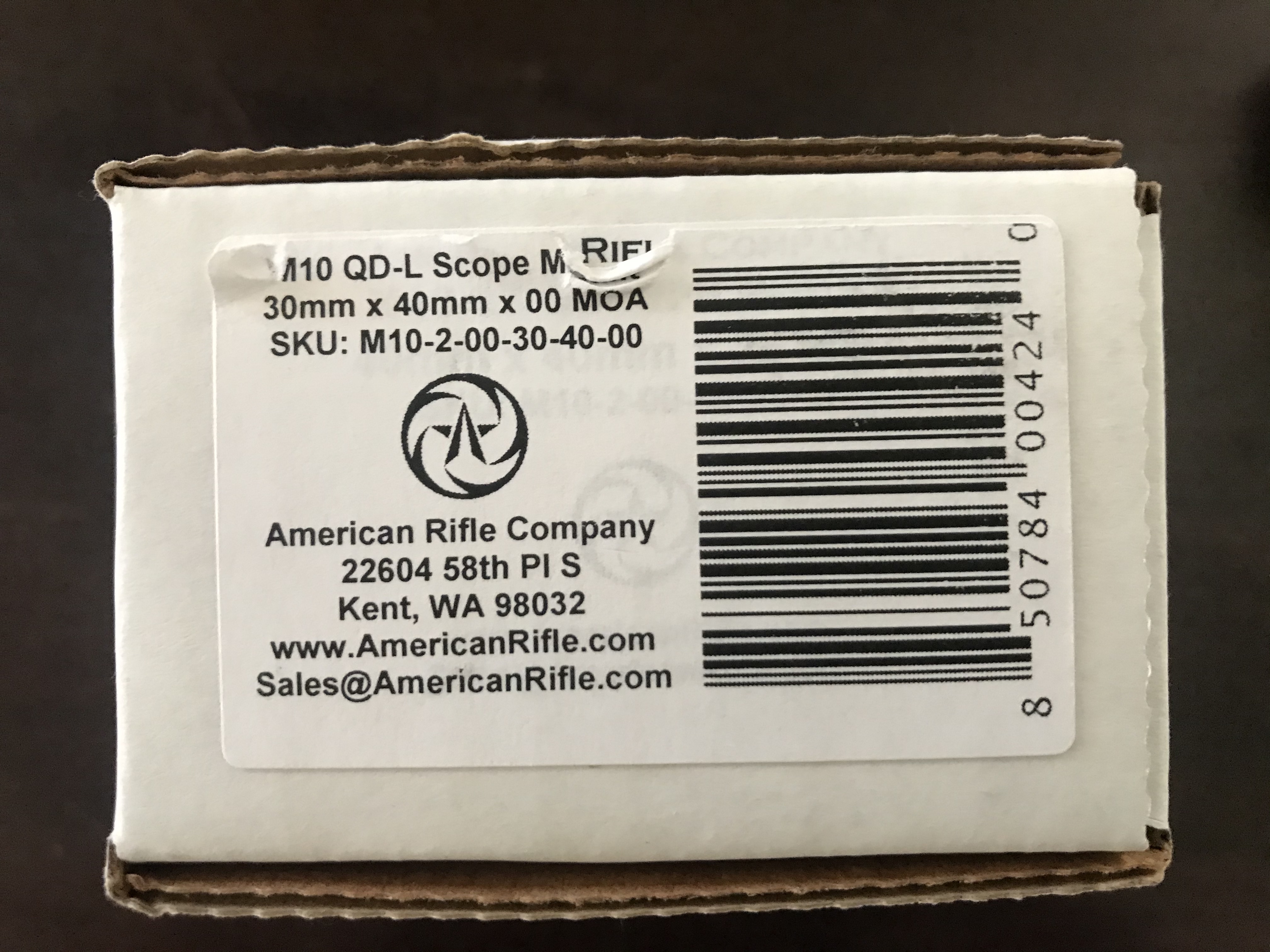

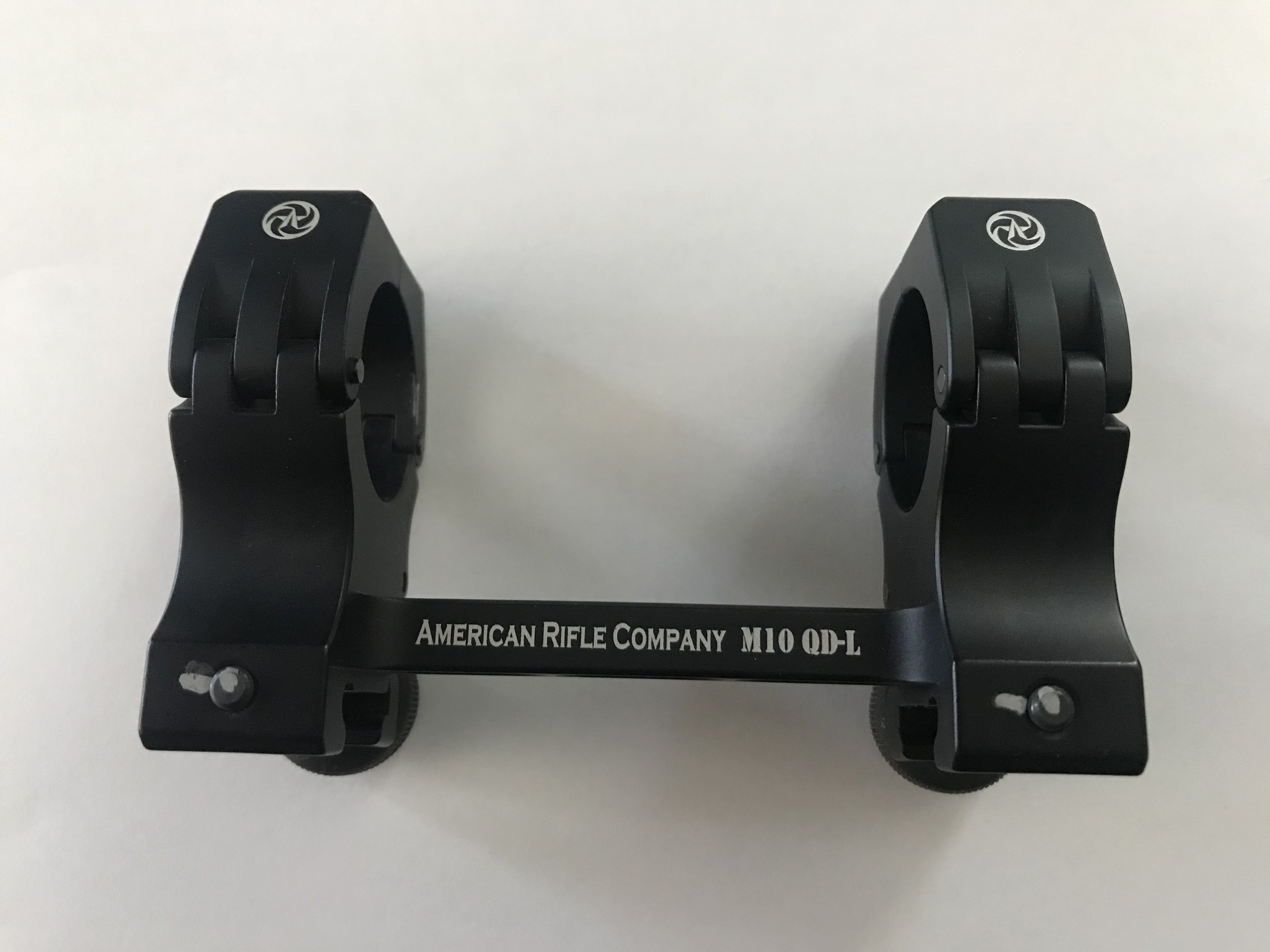

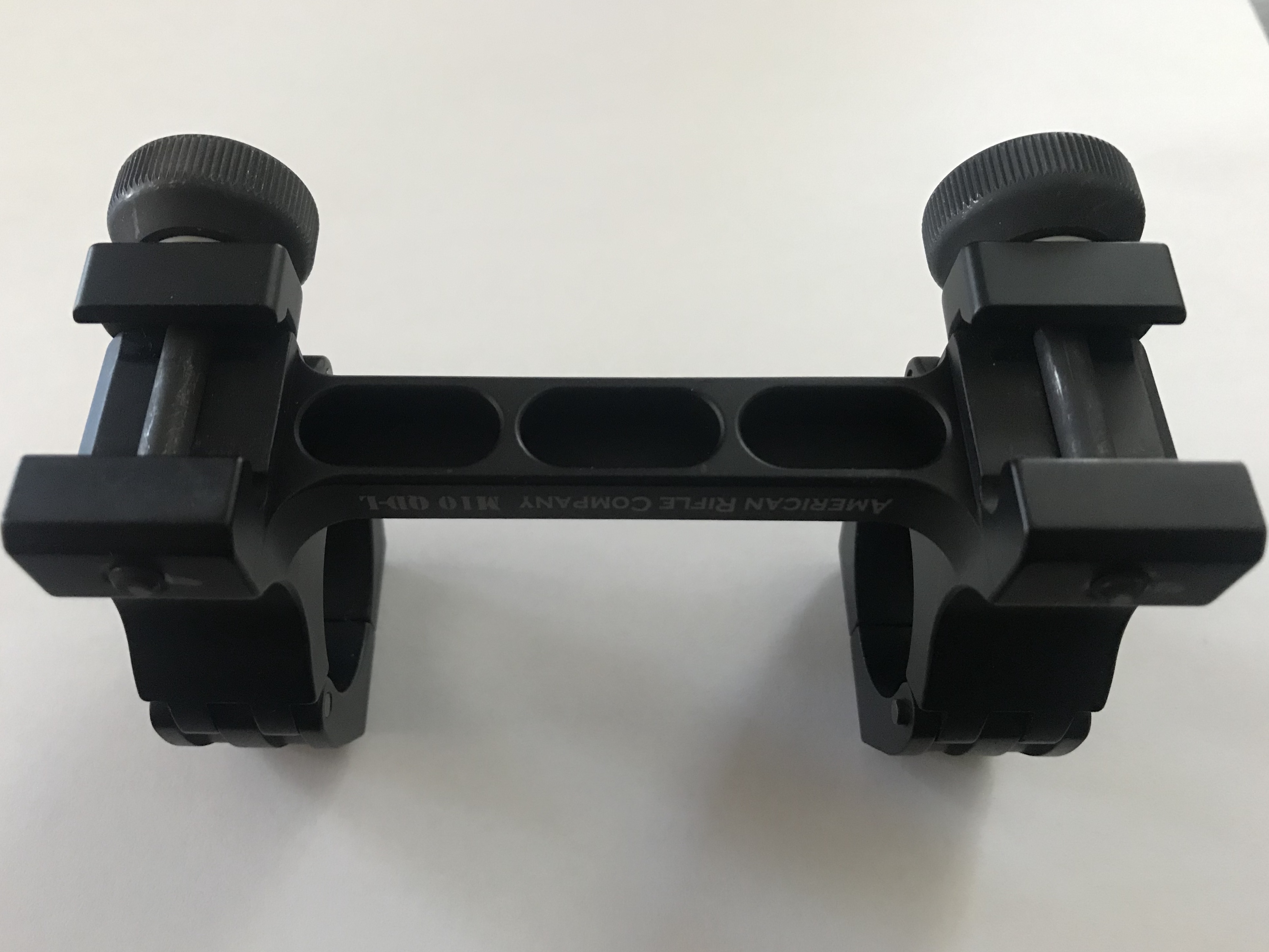

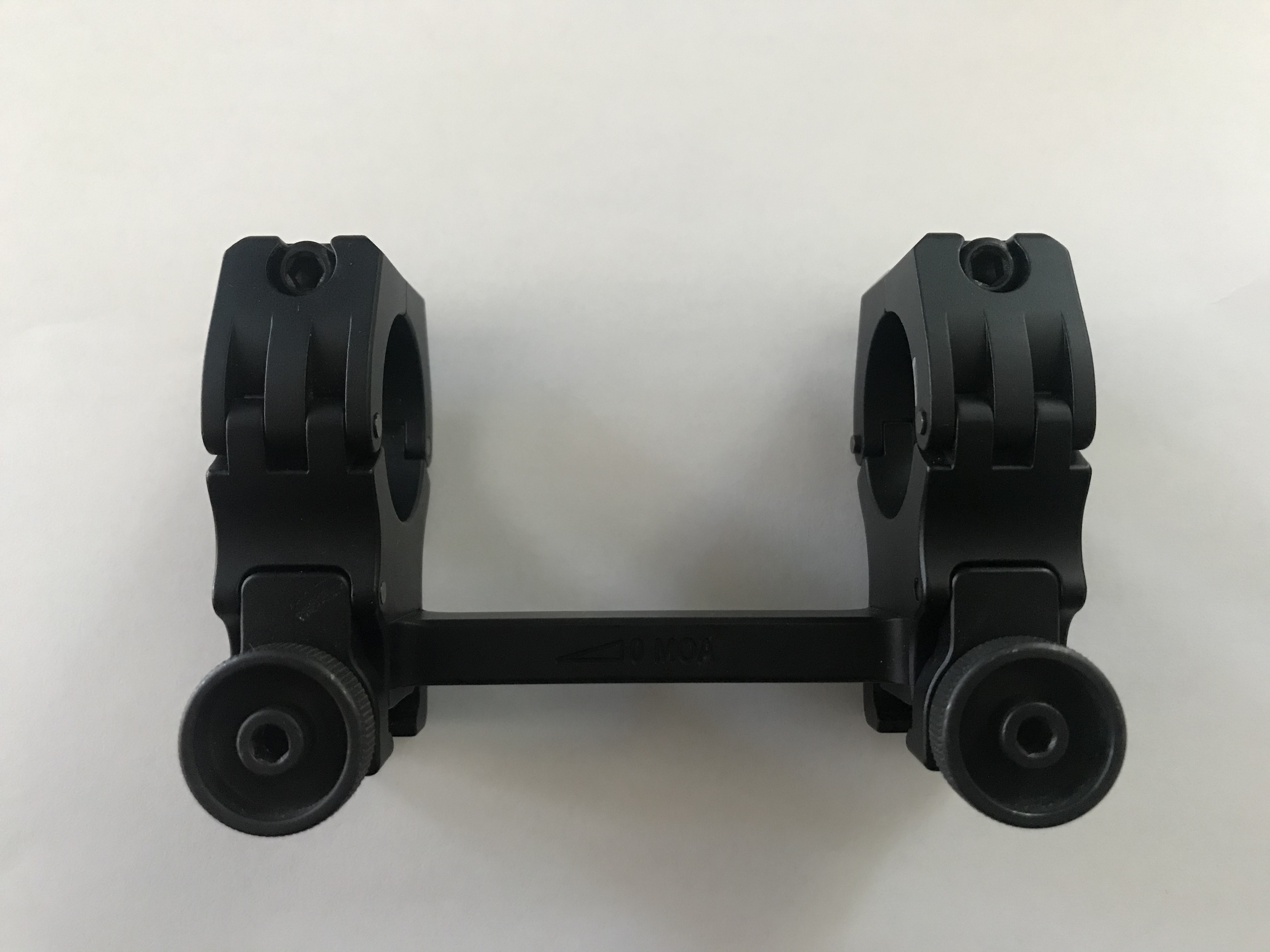

Attachment 10527
Attachment 10528
Attachment 10529
Attachment 10530
Attachment 10531

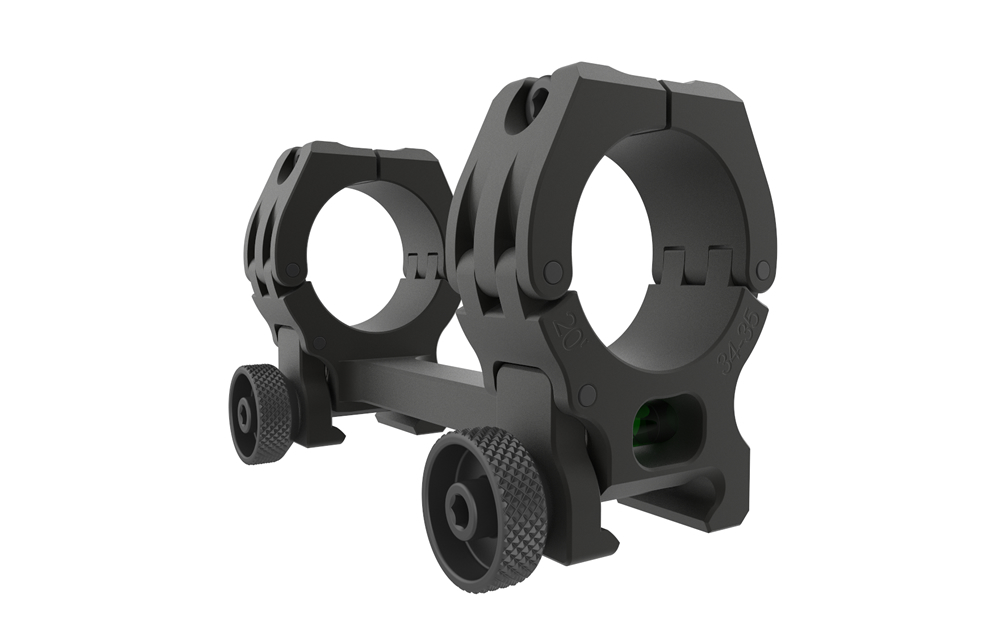

*the last photo is a stock photo from their site, the rest of the pics are of the actual mount for sale*
Call/text: 480-788-6399
Asking $150
-
-
-
-
final price drop bump. $150 shipped
-
SOLD. Thank you, Jim, for a friendly & honest transaction.
